Precision reverse engineering for various industries

NAVALISTA provides reverse engineering services.


Reverse engineering takes a crucial role in refurbishing, optimizing, and analyzing existing structures in the Marine Sector. Whether restoring a classic yacht, refit of cargo vessels, installation of new equipment: high-accuracy 3D modeling ensures seamless workflows and improved engineering solutions.

●  ●  ●

Our expertise in 3D scanning, data processing, and CAD modeling allows us to deliver highly accurate digital representations of complex structures. These models are crucial for performance analysis, modifications, and seamless integration into various engineering and manufacturing software systems.

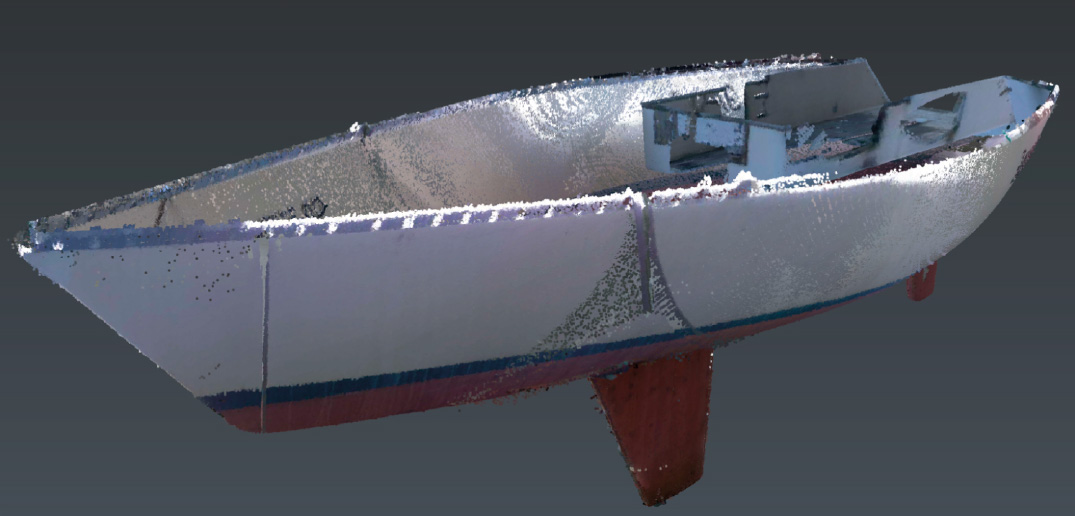

  • 3D Scanning & Point Cloud Processing:
    • The object is scanned using high-precision 3D laser scanning or photogrammetry.
    • The raw data is processed into a detailed point cloud representation of the surface.
reverse eng

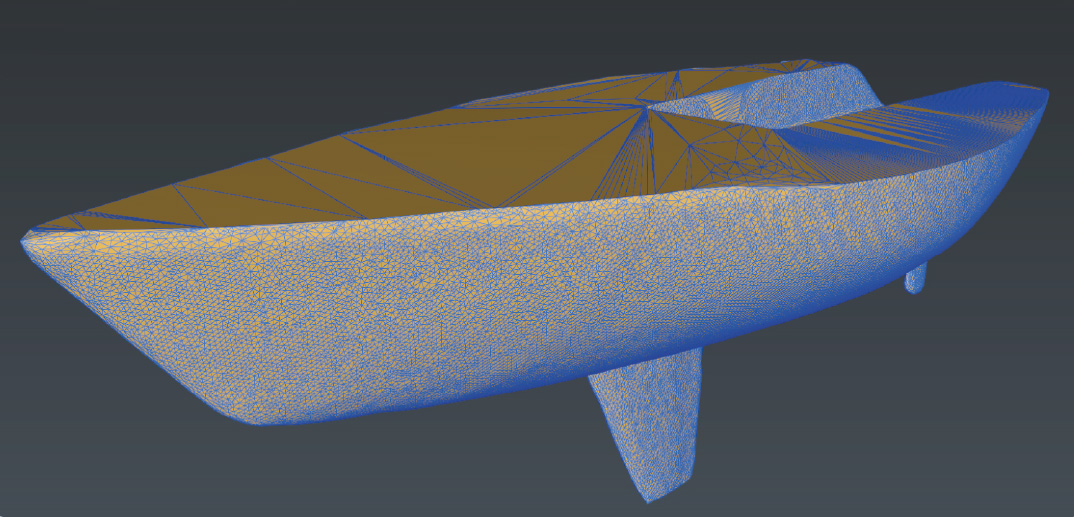

  • Converting to Polygon Mesh:
    • The point cloud data is converted into a polygonal mesh.
    • Noise reduction, hole filling, and surface smoothing techniques are applied to enhance accuracy.
reverse eng

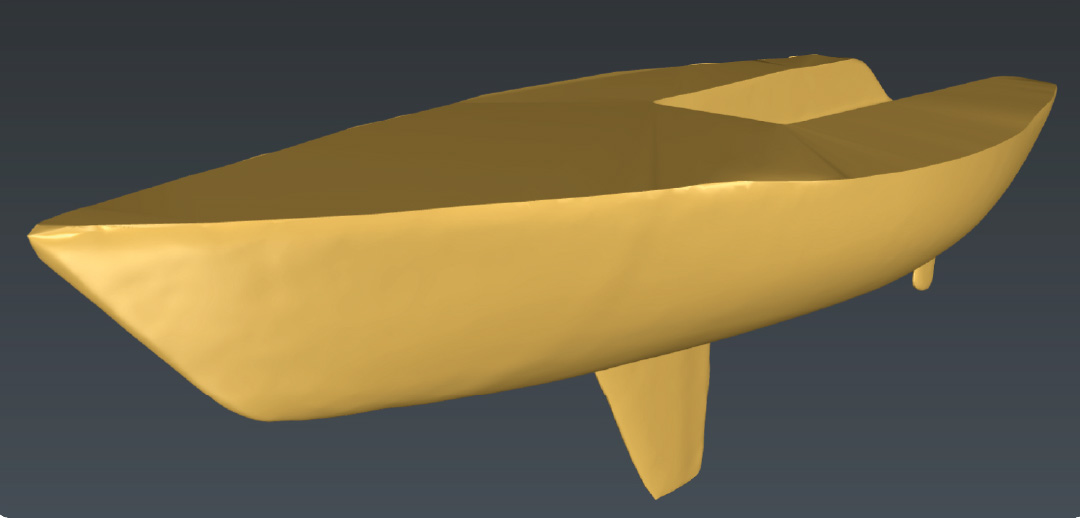

  • Advanced Processing & Refinement:
    • Further refinement is conducted to ensure clean topology.
    • Mesh optimization is performed to balance detail and file size.
reverse eng

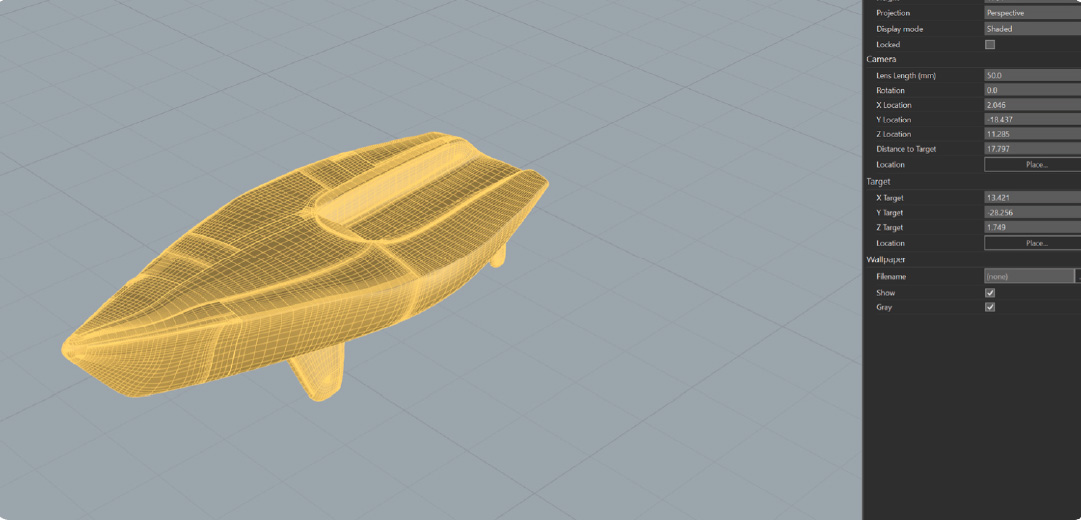

  • Export:
    • The processed mesh is imported into any CAD software for the further processing / modelling / calculation.
reverse eng
  • Applications & Utilization:
    • The finalized model is used for hydrostatic and hydrodynamic calculations in the Marine.
    • It serves as an accurate background reference in software such as ShipConstructor, Cadmatic, Aveva, etc., for shipbuilding and industrial design.
    • It supports industrial manufacturing and mechanical design by enabling precise part replication and modifications.
